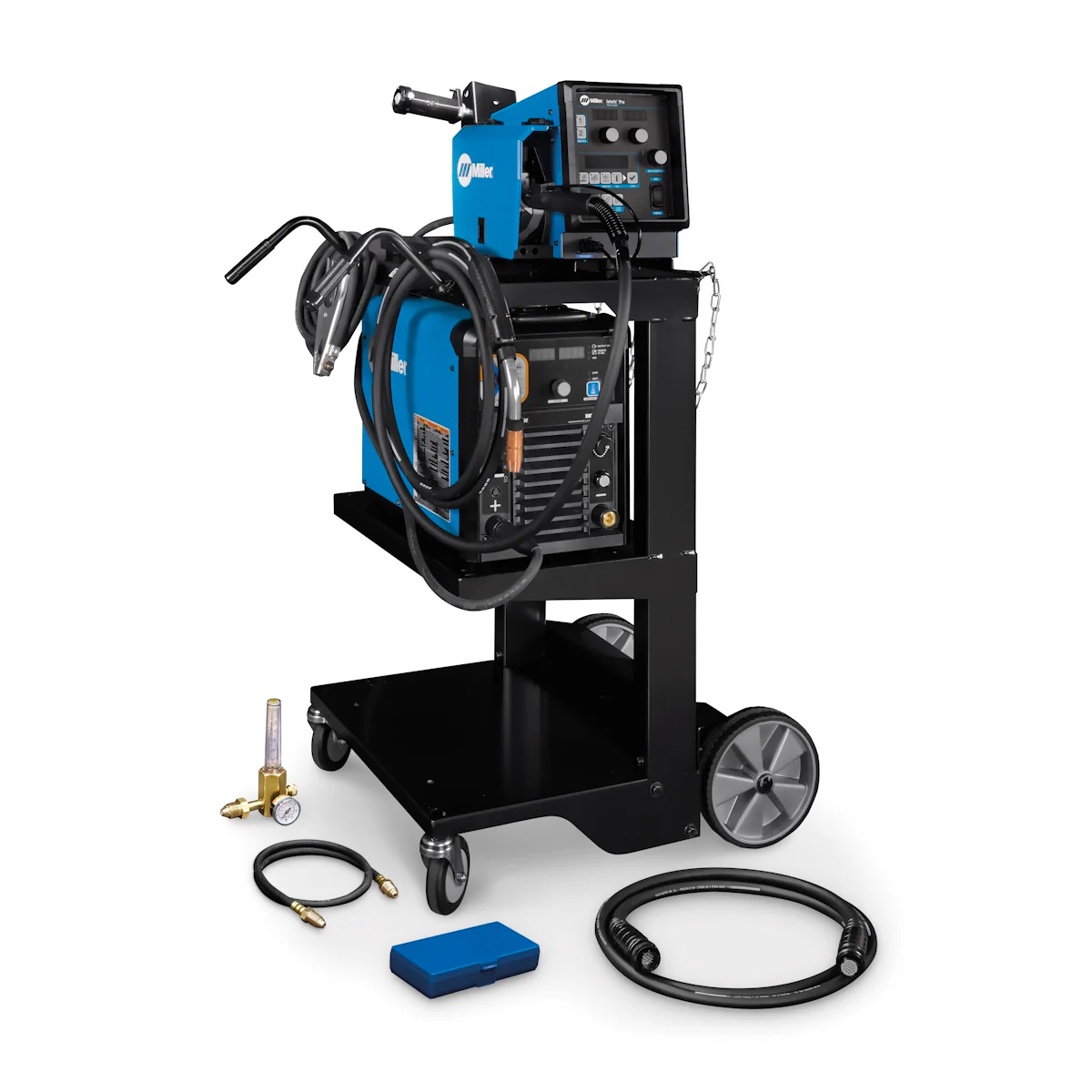

Miller XMT 400 MIGRunner w/Intellx Pro Feeder (951000212)

The XMT 400 with Intellx feeders offer scalable solutions with dedicated wire feeder options.  The Intellx pro feeder provides extra benefits over the basic feeder such as EZ-Set MIG, Accu-Pulse, memory buttons and steel/stainless weld programs.

These XMT 400 systems do not have ArcReach technology, rather they use ArcConnect cables so these systems are designed for fab shops and manufacturing.  If you need an XMT 400 with ArcReach for field work using an ArcReach feeder, you can view those machines here.

EZ-Set - simplifies parameter setup based on material thickness, removing complexity.

Accu-Pulse - offers a more forgiving arc and compensates for variations in operator technique, providing a wider operating window.

XMT Features
• Auto-Line voltage hookup (208-575V)
• 1 or 3-Phase Capable
• Large, Dual Digital Meters
• Auto Remote Sense
• Dinse Style Weld Disconnects
• Adaptive Hot Start
• RMD and Pulsed MIG
• Infinite Arc Control
• Lift-Arc
• Fan-on-Demand
• Lightweight, Aerospace-Grade Aluminum Case
• Process Selector Switch

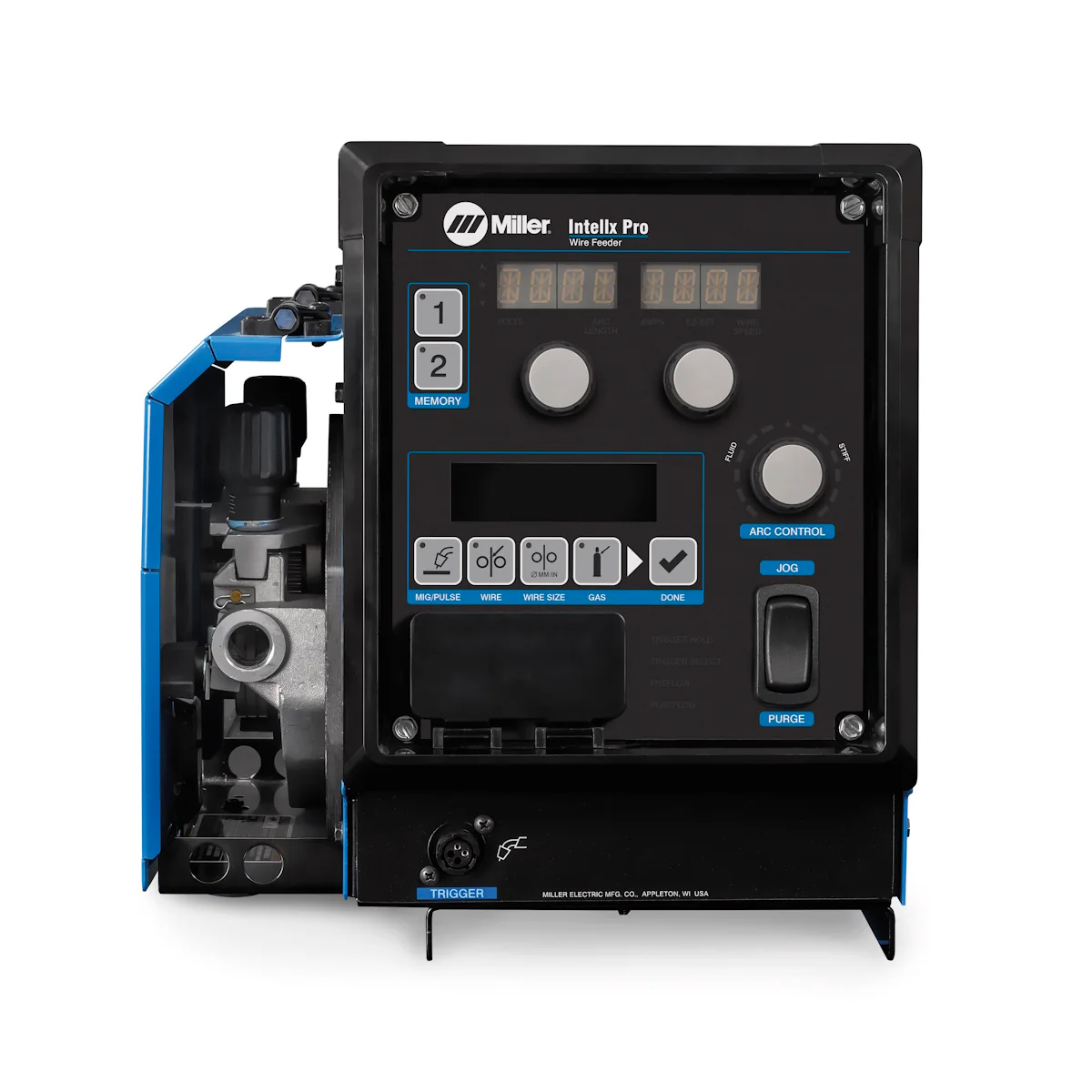

Intellx Pro Features
• EZ-Set MIG
• EZ-Set Accu-Pulse
• Trigger Select
• Preflow and Postflow
• 2 Memory Slots
• Steel/Stainless Programs
• Digital Meters
• Remote Voltage
• Wire Feed Speed
• Arc Control
• Trigger Hold
• Wire Jog and Purge
• Wire Feed Speed Feedback
• Four Drive Rolls
• Rotatable Drive
• Up to 60lb Spool

XMT Quick Specs
• Voltage Range: 10-38V
• Amperage Range: 15-425A
• Duty Cycle: 60% @ 400A 3-Phase | 60% @ 300A 1-Phase
• Power Source Weight: 75 lbs
• Power Source Dims: 17.25" H x 12.75" W x 20.25" D

Includes
• XMT 400 with Dinse Connectors (907881)
• Intellx Pro Single Feeder (951784001)
• 15 ft 400A Bernard MIG Gun
• MIGRunner Cart (195445)
• .035/.045 V-Groove Drive Rolls (227061)
• Regulator and 10 ft Gas Hose
• 15 ft Work Cable and Clamp
• ArcConnect Control Cable
