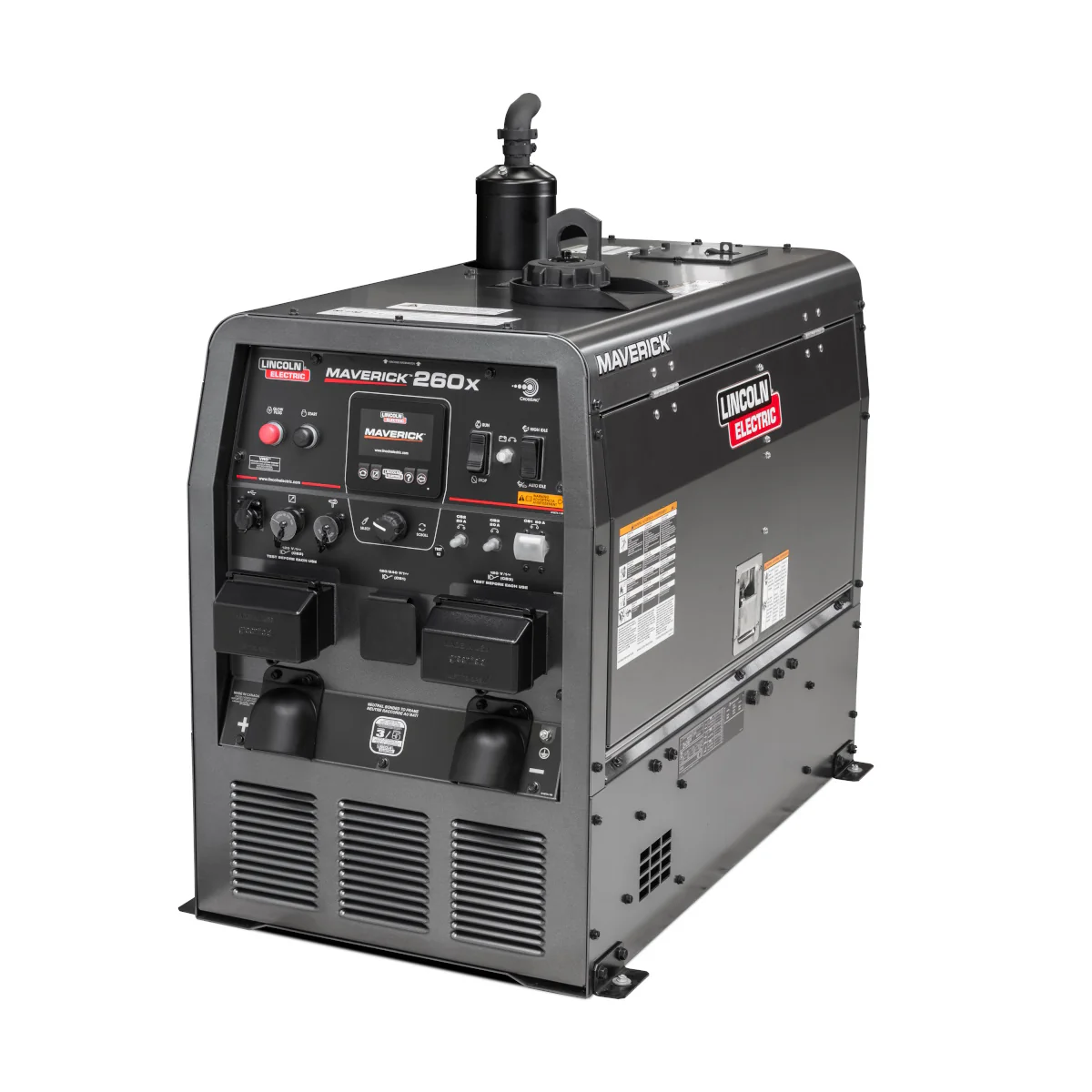

Lincoln Maverick 260X Diesel Welder Generator (K5272-1)
The Lincoln Maverick 260 diesel engine driven welder/generator provides 300 amp output and 9,500 watts of single-phase auxiliary power.
Optimized Performance - multi process workhorse with specialized stick modes, wire welding capability, and direct-connect spool gun for pulsed aluminum.
Greater Machine Control - durable, 4.6 inch digital display for full machine control, including process setup, maintenance reminders, and PIN authorization.
CrossLinc Enabled - change welder parameters at the arc without an additional control cable, helping to increase productivity, promote safety, and improve weld quality.
Auto Stop/Start Technology - save on fuel and avoid excess idling and engine wear.
Quick Specs
Rated Output: 260A, 30.4V, 100% Duty Cycle | 300A, 26.3V, 100% Duty Cycle
Output Range: Stick - 30-300A | DC TIG - 25-300A | MIG - 13-40V | Gouging - 100-300A
AC Power: Single Phase, 9,000 Continuous Watts
Dimensions: 39.25" H x 21.25" W x 42.34" L | Height w/Exhaust - 48.05"
Weight: 620 lbs
Engine Specs
Model: Kubota Z602, 2 Cylinder 16.8 HP
Operating Speed: High Idle - 3820 RPM | Low Idle - 2650 RPM | Full Load - 3600 RPM
Fuel: 12 gallon
Oil: 2.64 quarts
Coolant: 2.96 quarts
Original: $16,495.00
-70%$16,495.00
$4,948.50More Images
Lincoln Maverick 260X Diesel Welder Generator (K5272-1)
The Lincoln Maverick 260 diesel engine driven welder/generator provides 300 amp output and 9,500 watts of single-phase auxiliary power.
Optimized Performance - multi process workhorse with specialized stick modes, wire welding capability, and direct-connect spool gun for pulsed aluminum.
Greater Machine Control - durable, 4.6 inch digital display for full machine control, including process setup, maintenance reminders, and PIN authorization.
CrossLinc Enabled - change welder parameters at the arc without an additional control cable, helping to increase productivity, promote safety, and improve weld quality.
Auto Stop/Start Technology - save on fuel and avoid excess idling and engine wear.
Quick Specs
Rated Output: 260A, 30.4V, 100% Duty Cycle | 300A, 26.3V, 100% Duty Cycle
Output Range: Stick - 30-300A | DC TIG - 25-300A | MIG - 13-40V | Gouging - 100-300A
AC Power: Single Phase, 9,000 Continuous Watts
Dimensions: 39.25" H x 21.25" W x 42.34" L | Height w/Exhaust - 48.05"
Weight: 620 lbs
Engine Specs
Model: Kubota Z602, 2 Cylinder 16.8 HP
Operating Speed: High Idle - 3820 RPM | Low Idle - 2650 RPM | Full Load - 3600 RPM
Fuel: 12 gallon
Oil: 2.64 quarts
Coolant: 2.96 quarts
