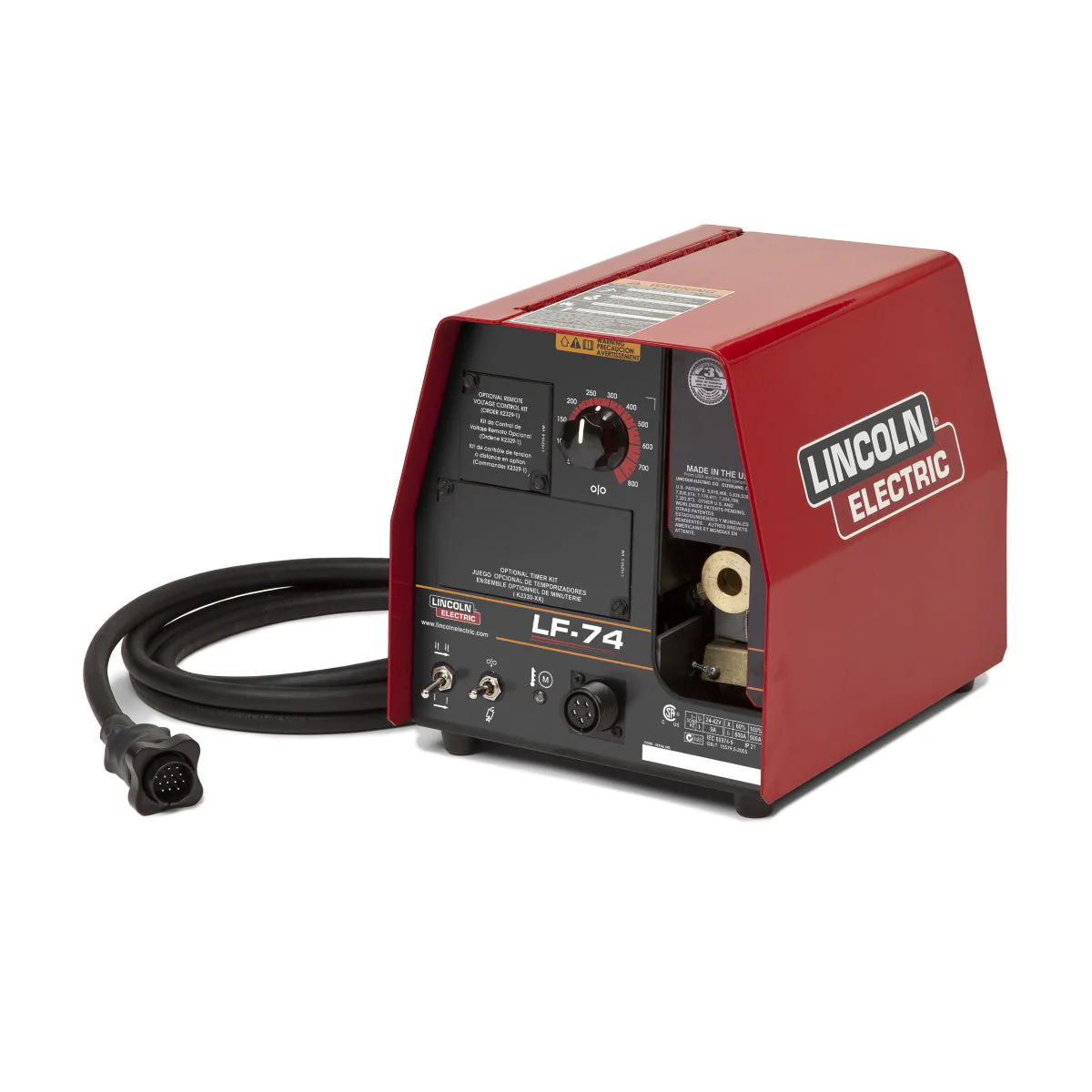

Lincoln LF-74 Wire Feeder (K2426)

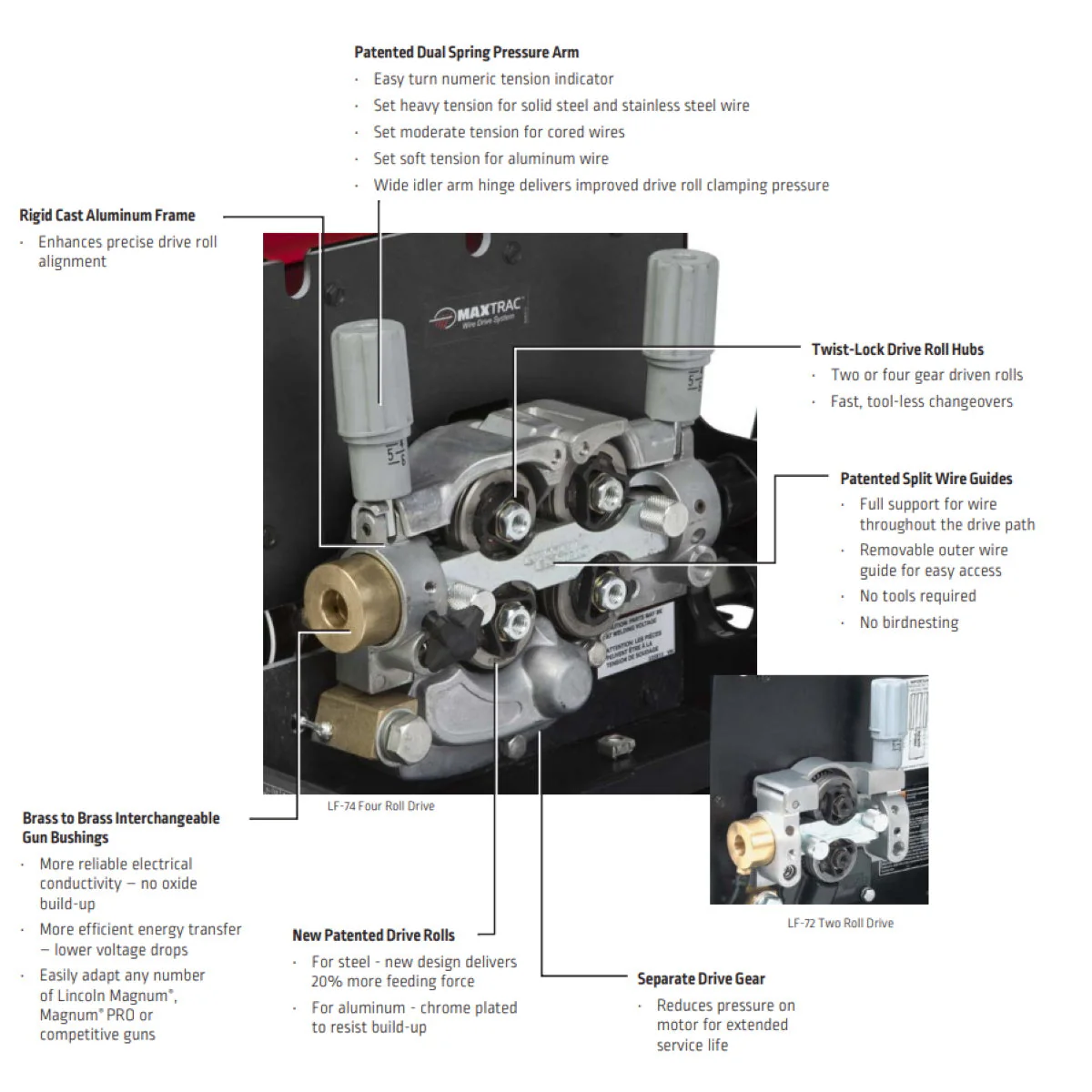

The LF-74 wire feeders are designed for MIG and flux cored wire welding in heavy manufacturing environments. These rugged feeders are built for reliability and high duty cycles. The LF-74 feeders include the Maxtrac heavy-duty cast aluminum wire drive system, brass-to-brass gun connections, and fully tool-less drive roll and wire guide changeouts.
What's Included - Please see "specs" tab for full details on each package.

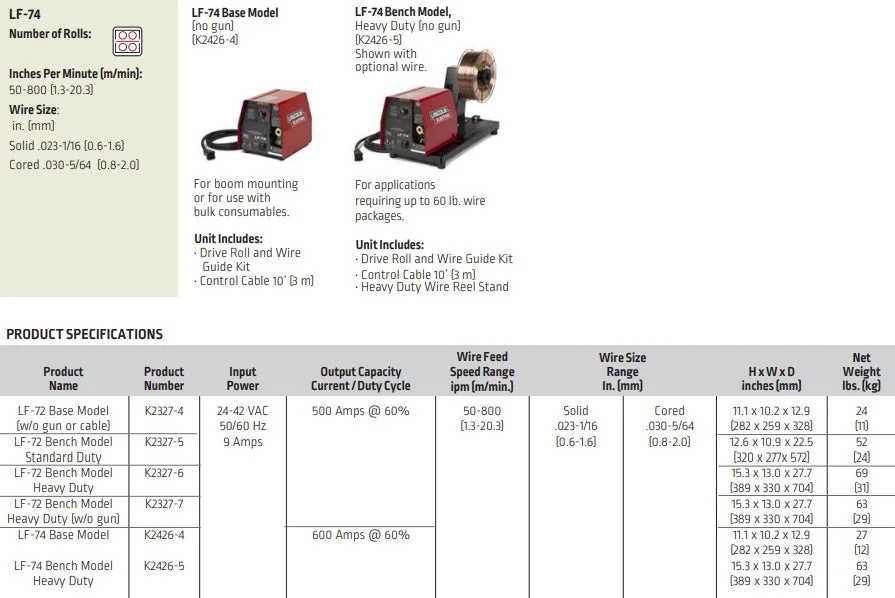

Quick Specs
• Input Power: 24-42 VAC | 50/60 Hz | 9 Amps
• Duty Cycle: 60% @ 600 Amps
• Wire Feed Range: 50-800 IPM
• Wire Size Range: Solid - .023-1/16 | Cored - .030-5/64
What's Included - Please see "specs" tab for full details on each package.
Quick Specs
• Input Power: 24-42 VAC | 50/60 Hz | 9 Amps
• Duty Cycle: 60% @ 600 Amps
• Wire Feed Range: 50-800 IPM
• Wire Size Range: Solid - .023-1/16 | Cored - .030-5/64
Select Select Model
From $1,048.50
Original: $3,495.00
-70%Lincoln LF-74 Wire Feeder (K2426)—
$3,495.00
$1,048.50More Images
Lincoln LF-74 Wire Feeder (K2426)
The LF-74 wire feeders are designed for MIG and flux cored wire welding in heavy manufacturing environments. These rugged feeders are built for reliability and high duty cycles. The LF-74 feeders include the Maxtrac heavy-duty cast aluminum wire drive system, brass-to-brass gun connections, and fully tool-less drive roll and wire guide changeouts.
What's Included - Please see "specs" tab for full details on each package.
Quick Specs
• Input Power: 24-42 VAC | 50/60 Hz | 9 Amps
• Duty Cycle: 60% @ 600 Amps
• Wire Feed Range: 50-800 IPM
• Wire Size Range: Solid - .023-1/16 | Cored - .030-5/64
What's Included - Please see "specs" tab for full details on each package.
Quick Specs
• Input Power: 24-42 VAC | 50/60 Hz | 9 Amps
• Duty Cycle: 60% @ 600 Amps
• Wire Feed Range: 50-800 IPM
• Wire Size Range: Solid - .023-1/16 | Cored - .030-5/64
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The LF-74 wire feeders are designed for MIG and flux cored wire welding in heavy manufacturing environments. These rugged feeders are built for reliability and high duty cycles. The LF-74 feeders include the Maxtrac heavy-duty cast aluminum wire drive system, brass-to-brass gun connections, and fully tool-less drive roll and wire guide changeouts.
What's Included - Please see "specs" tab for full details on each package.
Quick Specs
• Input Power: 24-42 VAC | 50/60 Hz | 9 Amps
• Duty Cycle: 60% @ 600 Amps
• Wire Feed Range: 50-800 IPM
• Wire Size Range: Solid - .023-1/16 | Cored - .030-5/64
What's Included - Please see "specs" tab for full details on each package.
Quick Specs
• Input Power: 24-42 VAC | 50/60 Hz | 9 Amps
• Duty Cycle: 60% @ 600 Amps
• Wire Feed Range: 50-800 IPM
• Wire Size Range: Solid - .023-1/16 | Cored - .030-5/64
