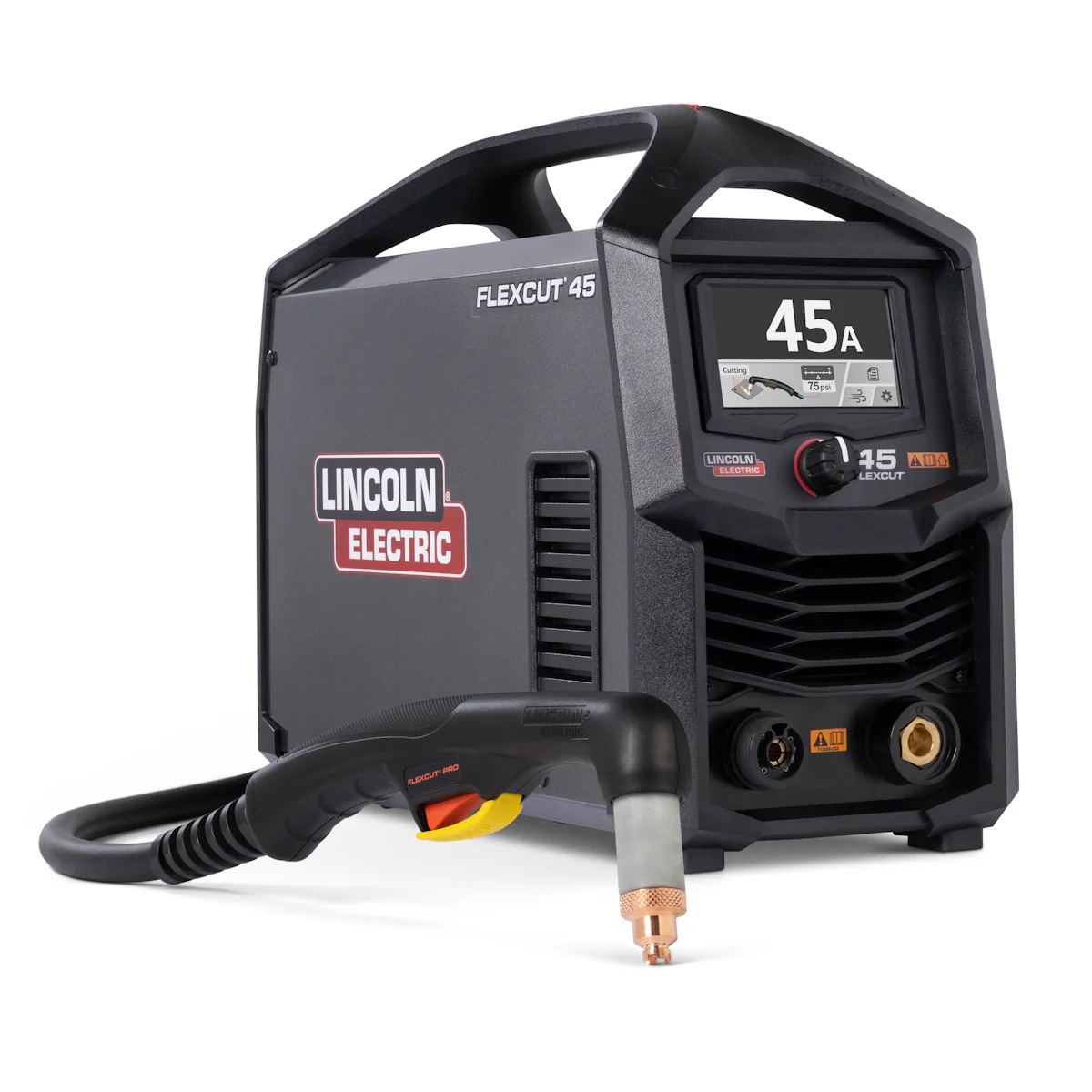

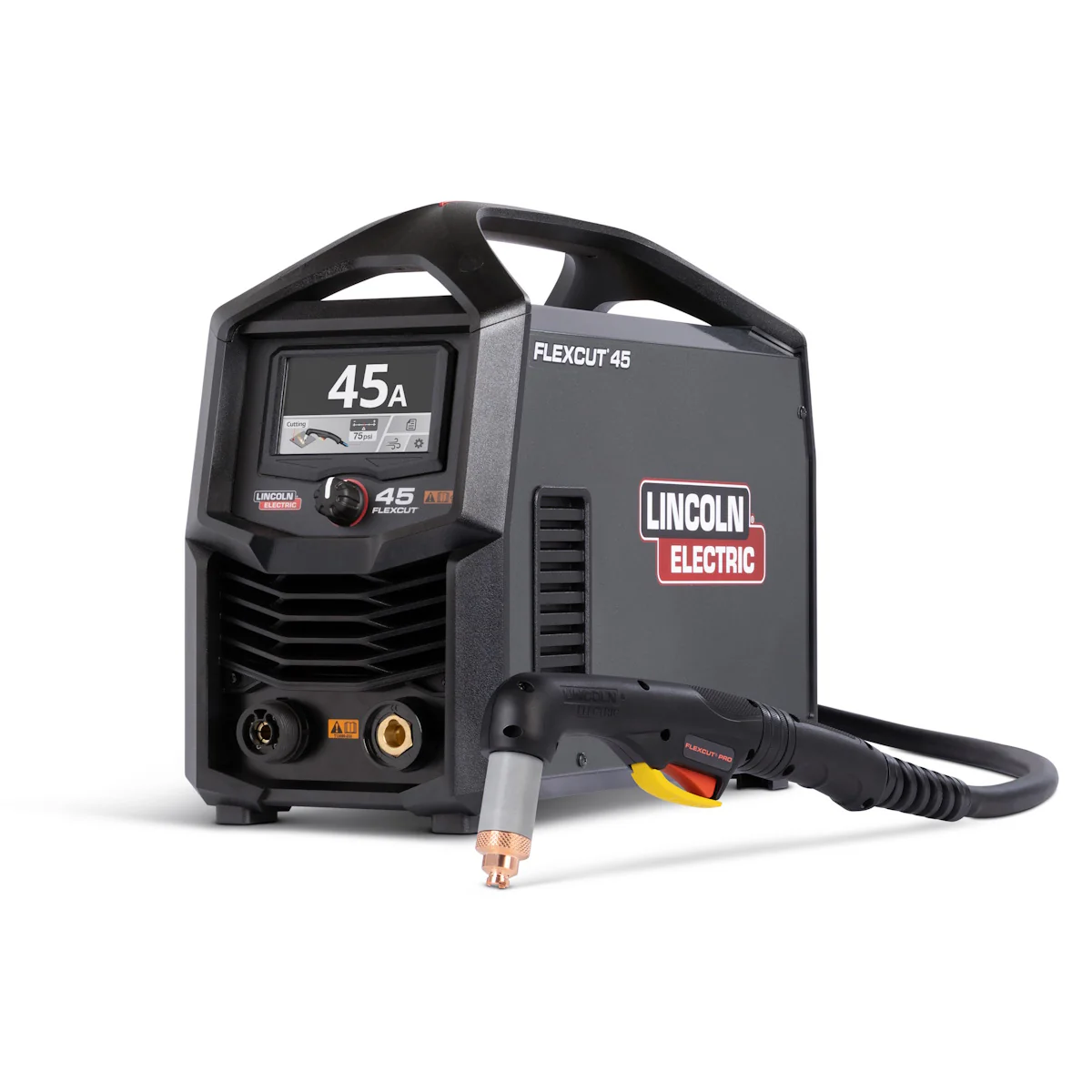

Lincoln FlexCut 45 Plasma Cutter w/25 Ft FlexConnect Hand Torch (K5823-H)
The Lincoln FlexCut 45 has a simple guided setup and a recommended cut capacity of 5/8" at 16ipm. This workhorse carries a 50% duty cycle at full 45 amp output when using 230V power, and comes with a 25 foot torch so you don't need to move your power source around the shop. The FlexCut 45 comes with built-in ports for plug and play CNC integration without any extra kits required.
The FlexCut Pro torches are universal across the entire machine lineup, and the patented FlexConnect torches allow you to replace the head or cables, saving you time and money. These torches utilize long-life consumables with an advanced electrode design and optimized airflow to deliver more cuts per consumable. The threadless electrode connection means no more seized threads, and the tool-free design allows you to replace consumables in seconds.
45 Amps of Cutting Power: Tackle thicker materials with confidence and precision.
High Duty Cycle: Built for demanding applications without overheating or slowing down.
LCD Display: Bright, easy-to-read screen with simple controls for quick and precise adjustments.
Dual Voltage Flexibility: Plug into 120V or 230V power sources.
Plug-and-Play CNC Integration: Built-in ports for easy setup - no extra kits required.
Multi-Process Capability: Drag cutting, fine cutting, gouging, and marking with one machine for maximum versatility.
Portable Yet Rugged: Portable design without compromising strength—easy to move, hard to damage.
5 Year Warranty: FlexCut power sources and torches have a 5-year warranty when purchased as a package.
Includes:
• FlexCut 45 power source
• FlexCut PRO FlexConnect Hand Torch with 25 ft cable (KP5850-25)
• Air Filter (KP5844-1)
• Work Clamp and Cable (KP6035-1)
• Input Power Cord
• Shoulder Strap (KP6012-1)
• 120V Input Adapter (KP6034-1)
• Complete Consumables Kit (KP5829-45)
Quick Specs:
• Input Power: 120/240V | Single Phase | 50/60 Hz
• Duty Cycle: 50% @ 45A 230V | 20% @ 27A 120V
• Recommended Circuit Breaker: 30A
• Output Range: 15-45A
• Engine Drive Needed: 10kW for 45A
• Air Pressure Needed: 90-130 psi
• Dimensions: 18.4" H x 8.1" W x 14.1" L
• Weight: 26.8 lbs
